Packaged in sets of five 10 ft bundles. Minimum order: 8 sets (40 pieces).

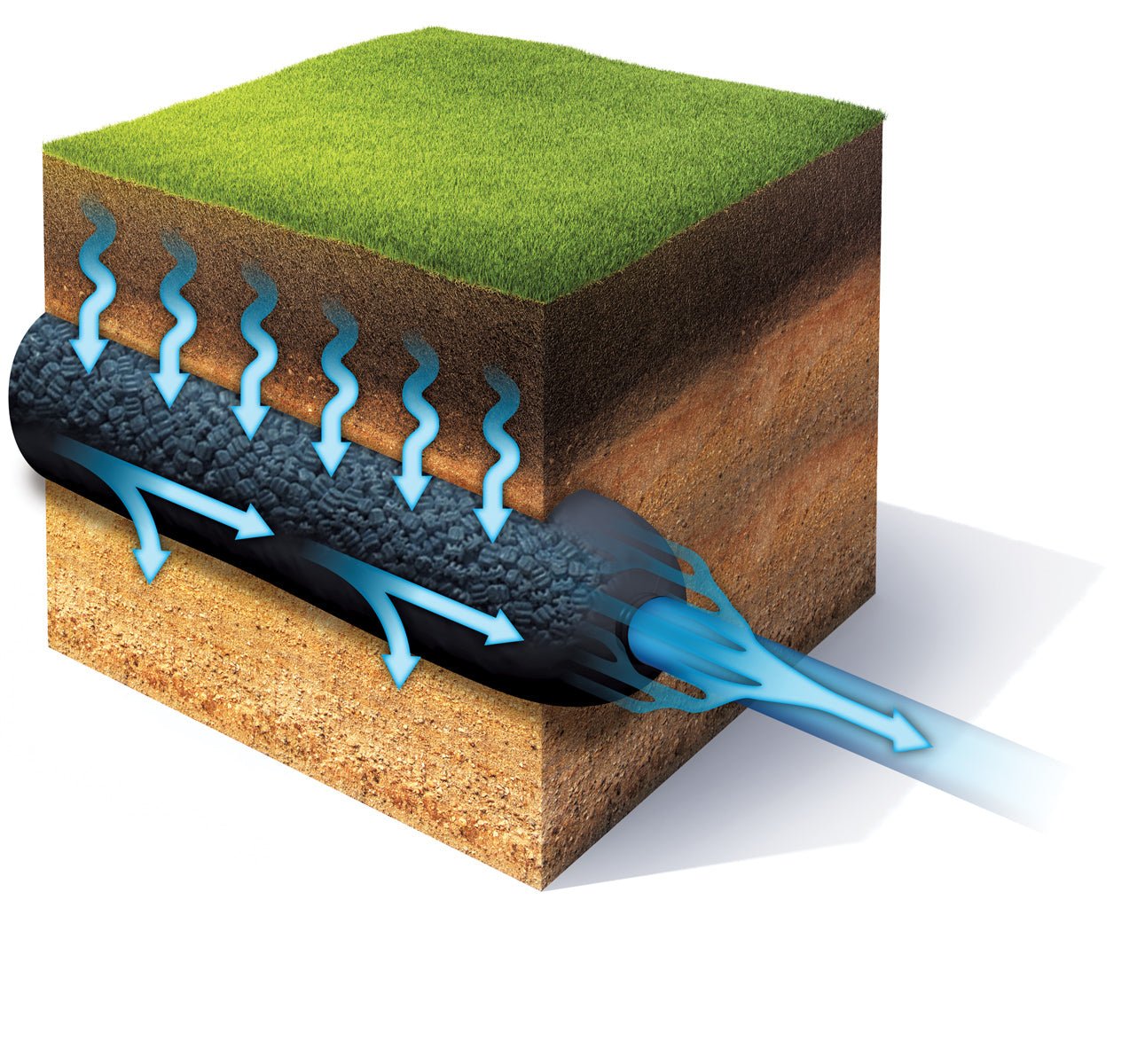

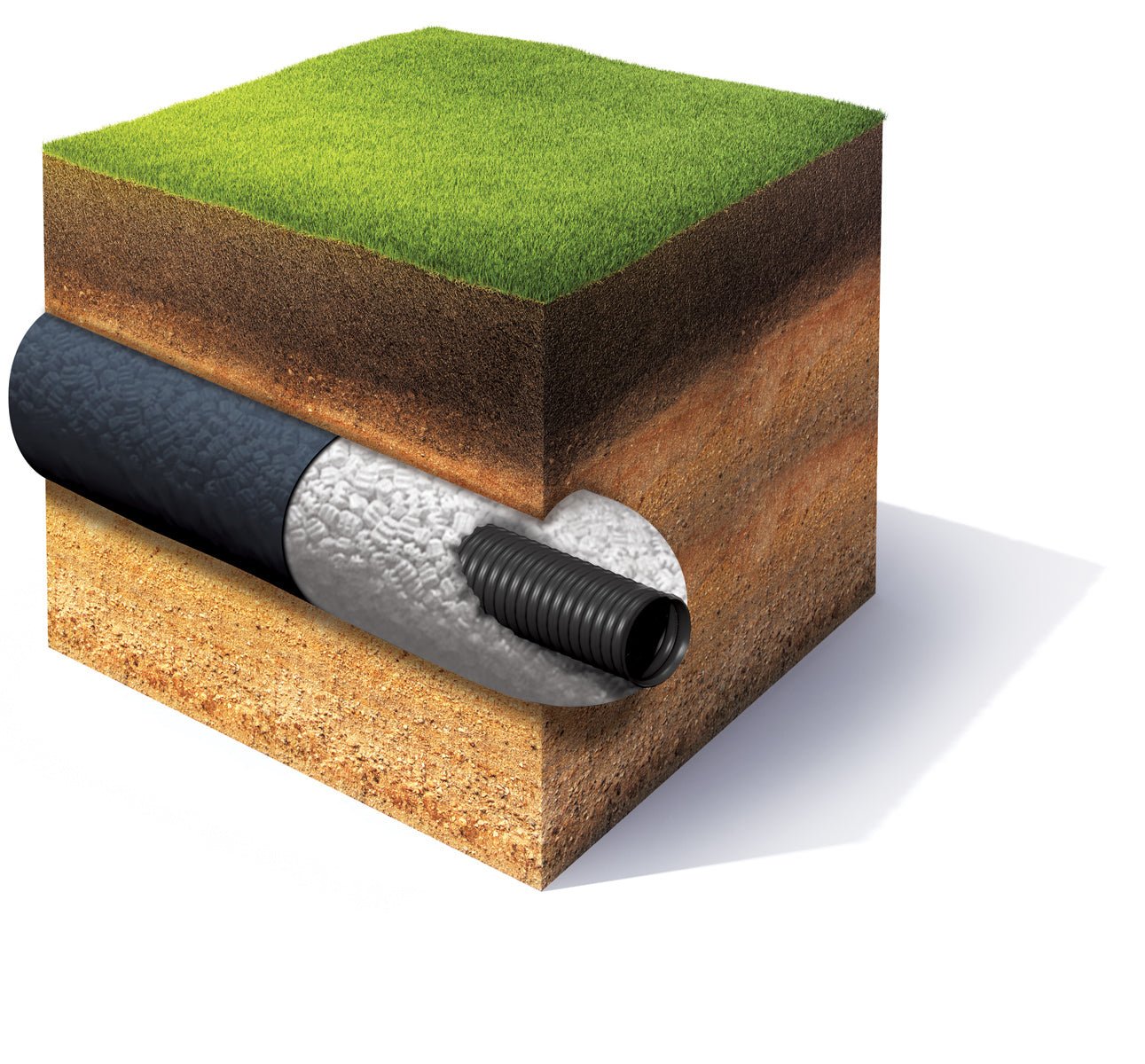

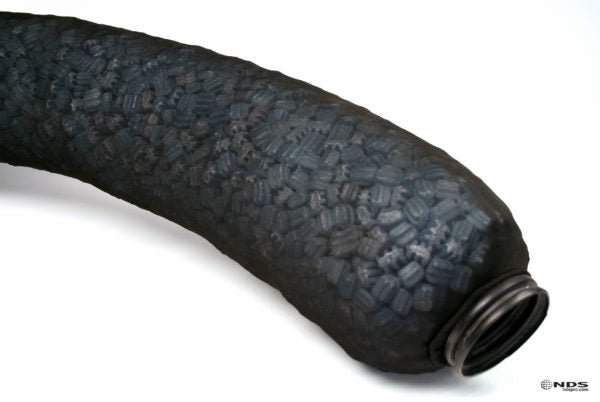

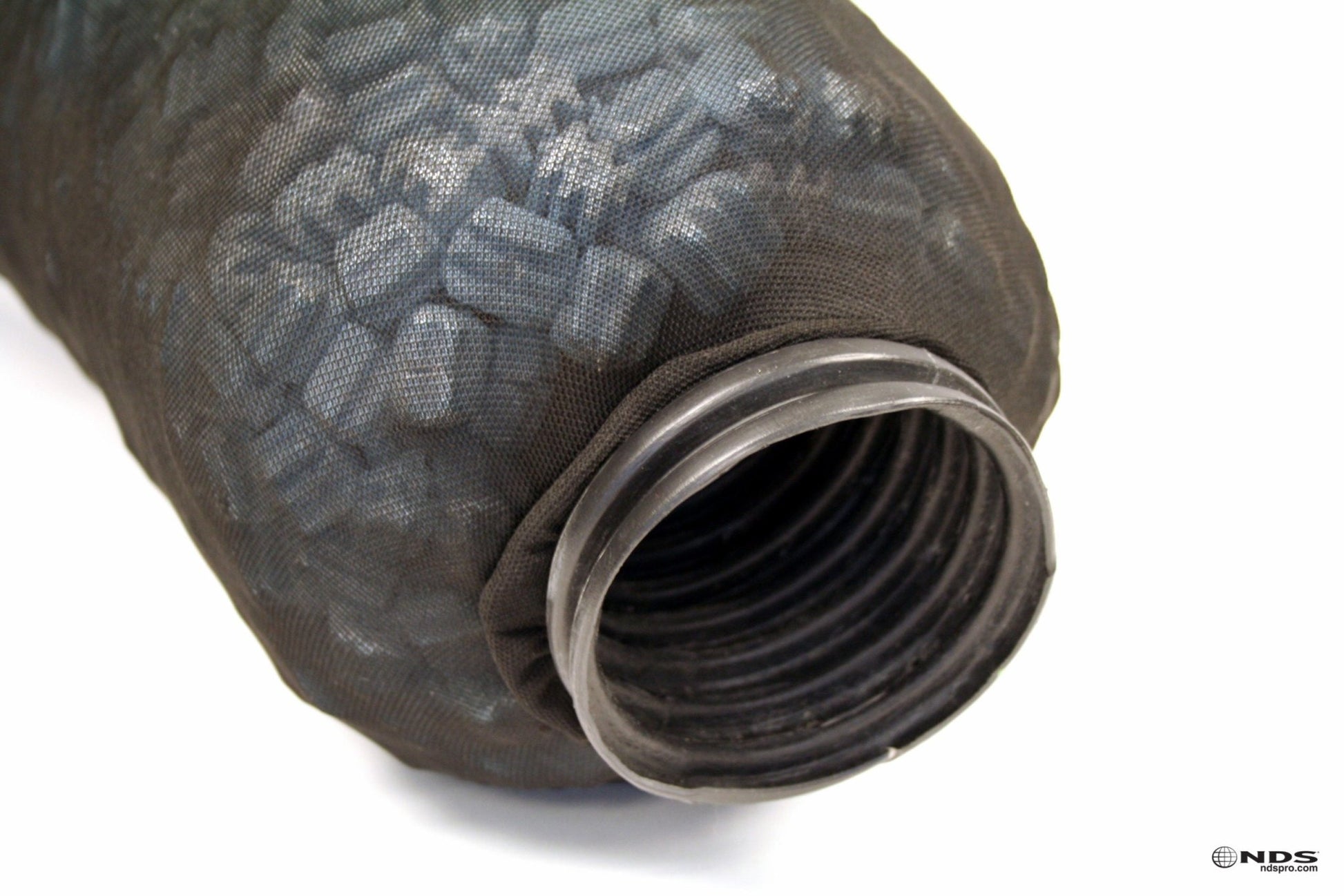

The NDS EZ-Flow French drain (often searched as an "EZ French drain" or "EZ drain") is a prefab, gravel-free French drain. Each bundle is a 4 in. slotted corrugated pipe surrounded by Poly-Rock engineered aggregate and wrapped in geotextile mesh. You lay it in the trench, backfill, and you are done. There is no gravel to haul, shovel or spread, and NDS says it installs in half the time of a traditional French drain.
EZ-Flow French Drain Specifications
| Pipe | 4 in. single-wall corrugated slotted HDPE pipe |
|---|---|
| Bundle | 10 in. diameter x 10 ft long (NDS EZ-1001F format) |
| Aggregate | Poly-Rock expanded polystyrene, made from 100% recycled resins; does not absorb water |
| Mesh | Polyethylene geotextile, 2.5–3.5 oz/sq yd |
| Recycled content | 90% minimum by weight (aggregate, mesh and pipe) |
| Cover depth | 6 in. minimum (no vehicles); 12 in. minimum for H-10 vehicle loads; 10 ft maximum |
| Slope | 1% minimum for positive drainage |
| Loads | Pedestrian traffic and lawn tractors when properly installed |
| Pack | Set of 5 bundles; minimum 8 sets |
Specifications: NDS EZflow French Drain Systems (manufacturer product page and technical documents), checked September 2026.
Why a Gravel-Free French Drain
- No gravel: Poly-Rock replaces stone, so a single person can carry and place a bundle.
- Faster installs: about half the time of a gravel French drain, per NDS.
- More storage: flow channels in Poly-Rock give greater storage capacity than gravel.
- Flexible: bundles bend around corners, cut to length and connect with couplers.
Common Uses
- Soggy lawns and landscape drainage

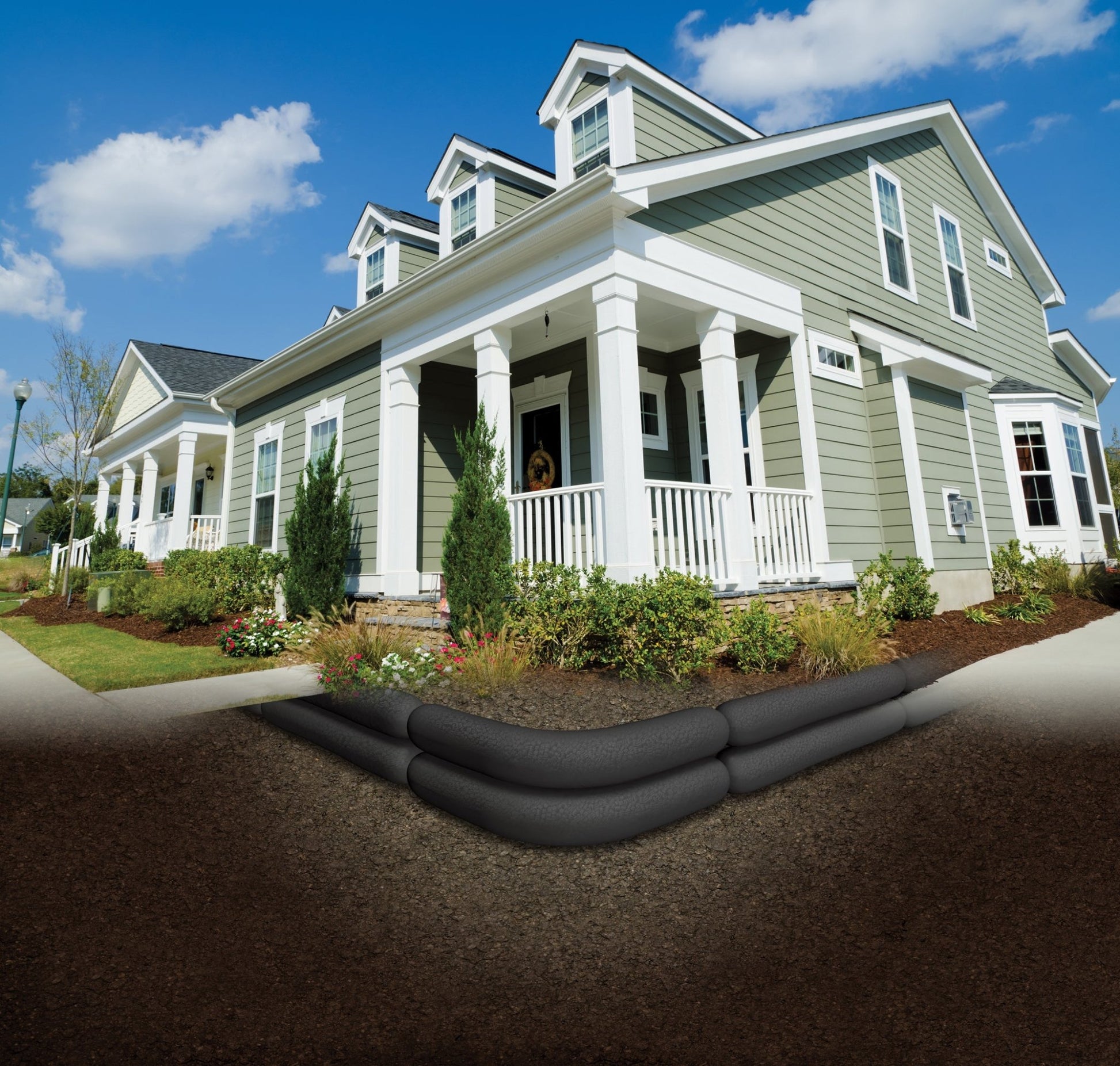

- Foundation, basement and perimeter drains
- Retaining wall drainage
- Downspout and roof runoff
- Interceptor and curtain drains

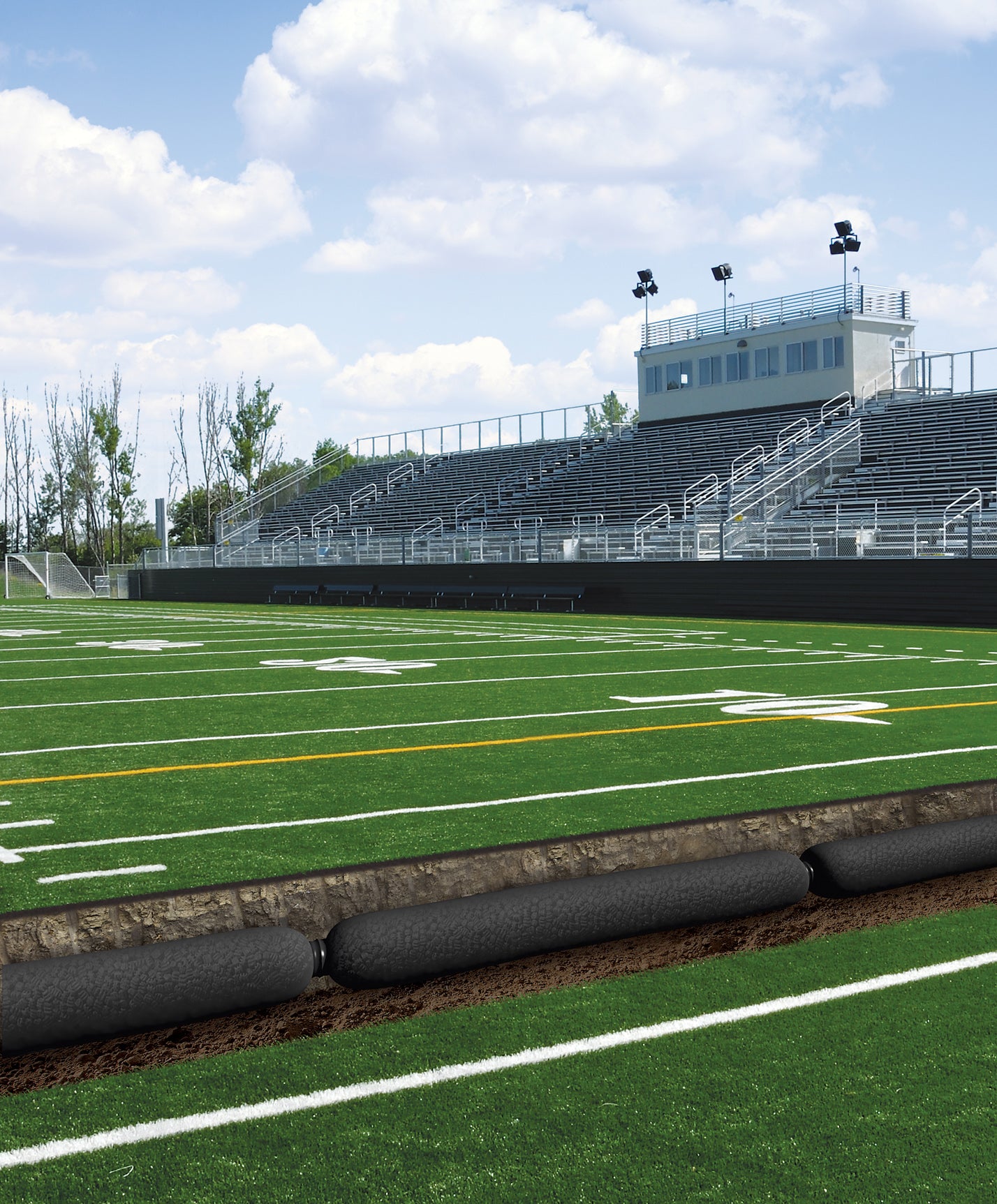

- Sports fields and municipal parks
How to Install
- Dig a trench with at least a 1% slope toward the outlet.
- Lay the bundles in the trench and connect them at the pipe ends.
- Route the outlet to daylight, a dry well or a storm drain.
- Backfill with at least 6 in. of cover (12 in. under vehicle traffic).
Video: NDS, "How to Install the EZ Drain French Drain." It shows EZ-Drain, the smaller version; EZflow installs the same way: trench, lay, connect, backfill.
Works With
- NDS Flo-Well dry well: a place for the water to go when there is no downhill outlet
- 12 in. and 9 in. catch basins: collect surface water into the drain line
Shipping
Orders over $2,000 ship free by common carrier. Most orders ship within 4 business days and arrive in 3 to 6 business days.
EZ-Flow Price & Cost
Each 10 ft bundle is $72.25, about $7.23 per foot with the 4 in. slotted pipe, Poly-Rock aggregate and mesh sleeve included. There is no gravel to buy, haul or spread. Bundles come in sets of five (50 ft). The minimum order is 8 sets, 40 bundles or 400 ft, for $2,890, and it ships free.
Need less than 400 ft?
Request a quote with your run length and delivery ZIP code, and we'll let you know the options.
Ordering 1,000 ft or more?
For large yards, sports fields and municipal projects, request a quote. We quote freight and delivery to your site, and tax-exempt orders are welcome.
EZflow vs. EZ-Drain: Which Do You Need?
Both are NDS gravel-free French drains: slotted corrugated pipe surrounded by Poly-Rock aggregate in a mesh sleeve, installed the same way. NDS says their flow performance is similar.
- EZ-Drain is the smaller-diameter version with smaller aggregate, sold at home centers as single 10 ft pieces. It suits short runs, such as one downspout.
- EZflow is NDS's larger line: 7 in. bundles (3 in. pipe), 10 in. bundles (4 in. pipe) and 15 in. bundles (6 in. pipe), plus aggregate-only versions. This page sells the 10 in. EZ-1001F with 4 in. pipe in bulk, for contractors, long runs and whole-yard drainage. For the 7 in. or 15 in. sizes, request a quote.
Downloads & Resources
- EZflow installation instructions (NDS, PDF)
- EZ-1001F specifications (NDS)
- NDS EZflow calculator
- NDS EZflow French drain systems overview
Frequently Asked Questions
What is the difference between EZflow and EZ-Drain?
Both are NDS gravel-free French drain systems. NDS says their flow performance is similar and one to two orders of magnitude greater than native soil. EZ-Drain comes in smaller-diameter bundles with a smaller aggregate.
Can I buy fewer than 40 bundles?
Online, the minimum order is 40 bundles (400 ft). For a shorter run, request a quote with your length and we'll let you know the options.
How deep should an EZ-Flow French drain be buried?
NDS calls for at least 6 in. of cover where there is no vehicle traffic and 12 in. for H-10 vehicle loads. Maximum burial depth is 10 ft for typical soil. Install with at least a 1% slope.
Do you need gravel with EZ-Flow?
No. Poly-Rock engineered aggregate replaces the gravel, so there is no stone to haul or shovel.
Can I cut EZ-Flow bundles?
Yes. Push the aggregate to either side of the cut, cinch it with two zip ties, and cut between them. Connect bundles with couplers at the pipe ends.
Where does EZ-Flow work best?
In non-clay soils. It handles lawns, plant beds, sports fields, foundations, retaining walls and downspout runoff.
More specs and installation guides: NDS resource center.
