NDS EZ Roll Grass Pavers 4' x 150' Roll (EZ4X150)

NDS EZ Roll Grass Paver – an H-20 rated grass paver roll made from recycled plastic. Free shipping: most orders ship within 4 business days and arrive in 3 to 6 business days.

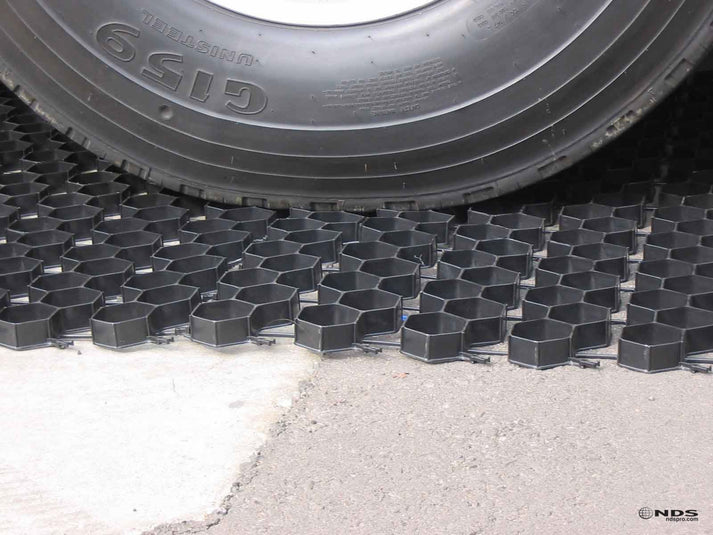

NDS rates the EZ Roll Grass Paver at 53,683 psf unfilled compressive strength, enough for H-20 and H-25 loads such as fire trucks; in NDS testing a filled paver carried 400,000 lb. Designed for superior load-bearing capacity, it supports high-traffic areas while promoting healthy turf growth.

How EZ Roll Grass Pavers Work

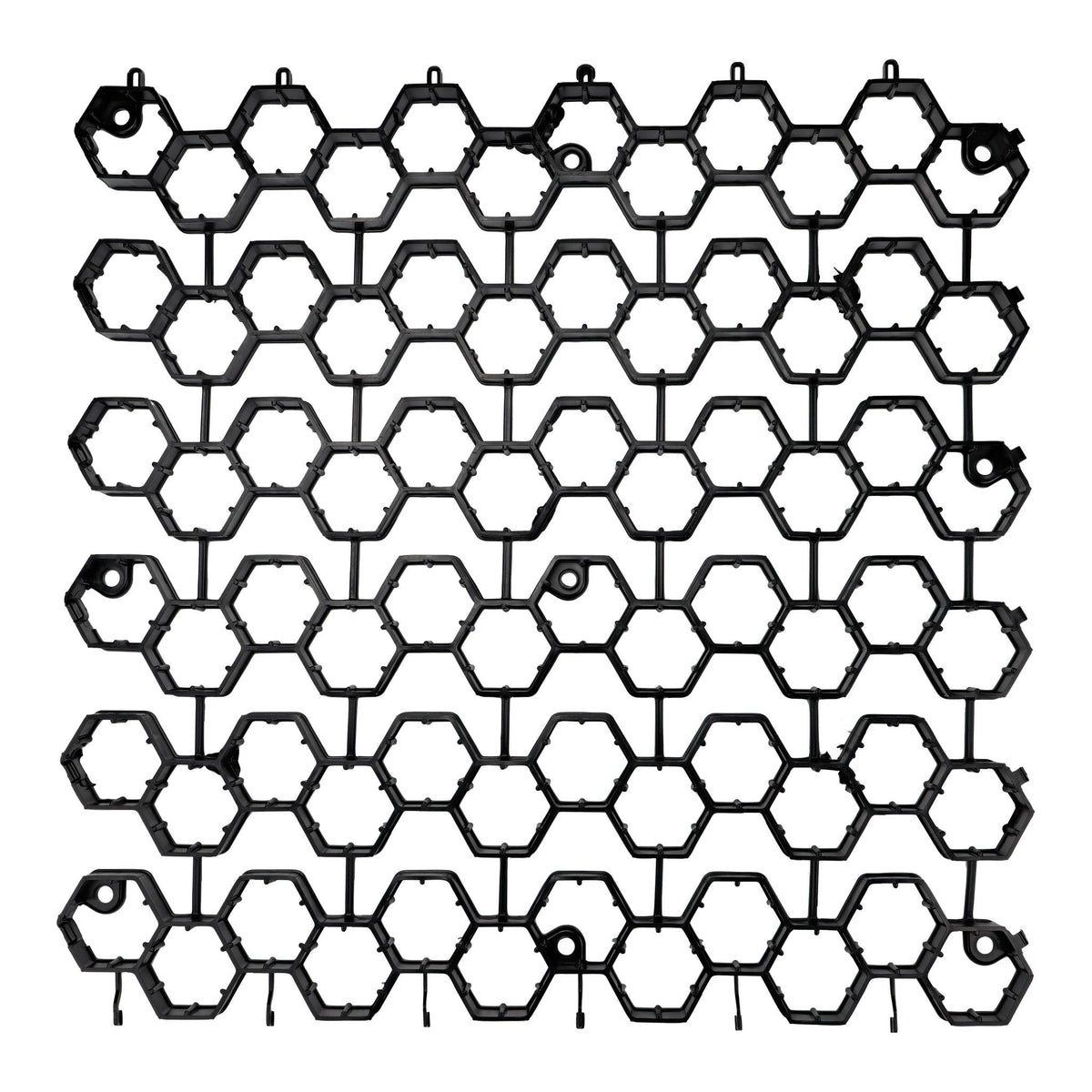

The NDS EZ Roll Grass Paver system allows light to heavy vehicular traffic over grass without causing damage. By stabilizing soil and preventing compaction, these pavers create a durable, long-lasting solution for areas subjected to foot and vehicle traffic. The grass root zone is reinforced and protected by a gridwork of hexagonal cells.

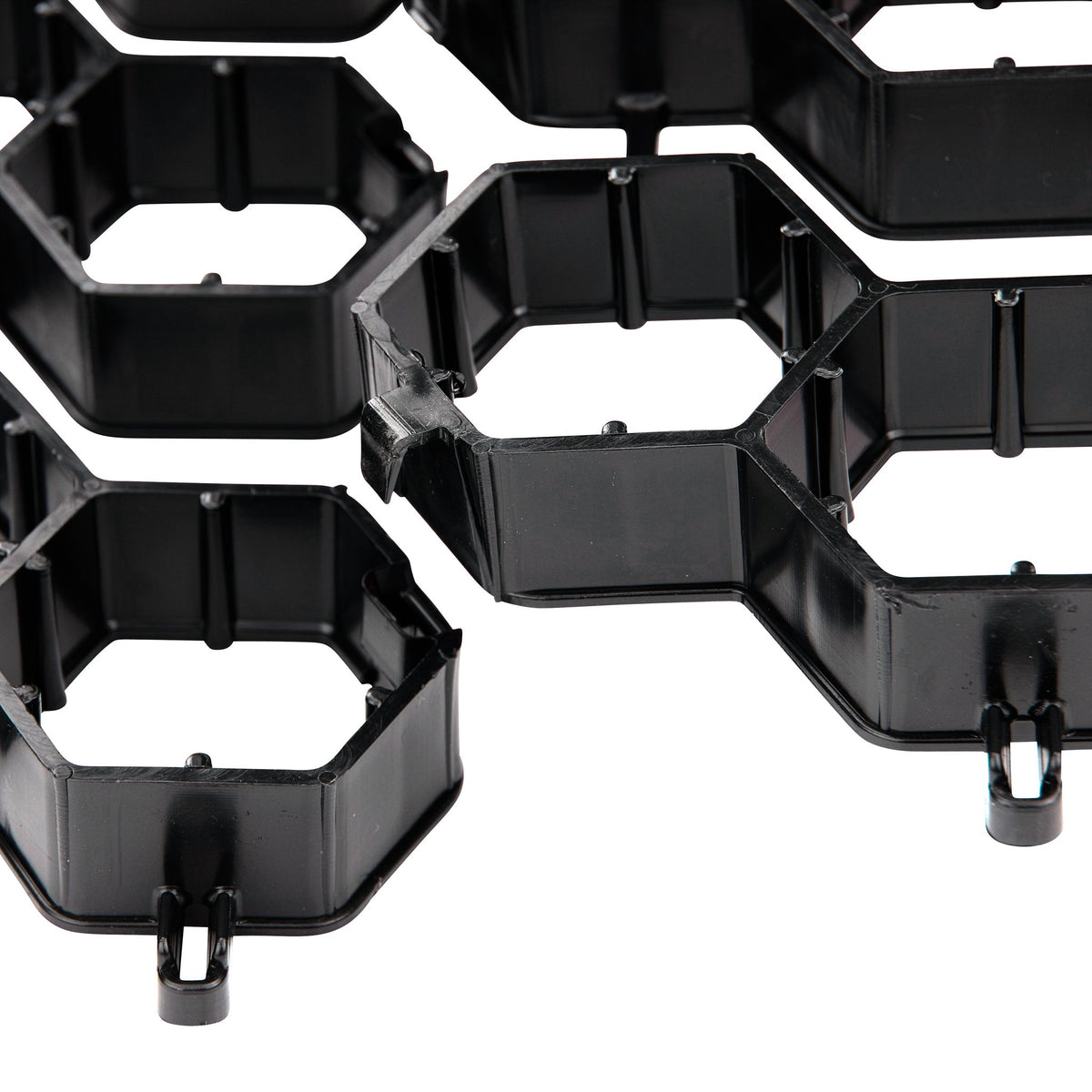

Each paver is manufactured in pre-assembled rolls with a lateral snap-lock system, making installation fast and tool-free.

EZ4X150 Specifications

Specifications: NDS EZ Roll Grass Pavers (manufacturer product page and technical documents), checked September 2026.

Applications for Grass Pavers

• Grass parking lots
• Driveways & residential access roads
• Pathways & golf cart paths
• Emergency fire lanes
• Helipads & overflow parking

Benefits of NDS EZ Roll Grass Pavers

• Supports healthy turf growth: prevents soil compaction and root damage
• High compressive strength: allows vehicles to drive over grass without sinking
• Reduces demands put on the landscape drainage system
• Less expensive to maintain over time than traditional hardscaping
• More pleasing aesthetically than traditional hardscaping

Stormwater Management & Sustainability

NDS EZ Roll Grass Pavers provide a green, environmentally friendly alternative to traditional paving methods. By protecting the root zone and preventing soil compaction, they allow grass to thrive where impervious hardscaping would typically be used. Designed as a sustainable alternative to concrete and asphalt, they help reduce water runoff and support LEED and green building initiatives.

• Permeable surfaces: these pavers eliminate or significantly reduce stormwater runoff, aiding in effective water management.
• Natural filtration: stormwater filters naturally through the subsurface, reducing pollutants and supporting environmental health.

EZ Roll Grass Paver Installation

Product ships in large rolls for easy installation. See the EZ Roll installation detail (PDF) and the step-by-step installation video below.

NDS EZ Roll Grass Paver installation tutorial: essential tips to ensure a successful installation.

Base Preparation

NDS recommends a compacted AASHTO #57 stone base sized to the traffic:

A non-woven geotextile under the base is optional. Poorly draining soil may need a perforated underdrain. Leave at least 1 in. of clearance at concrete edges.

Filling & Seeding: Choosing the Right Soil

Fill the cells with native topsoil, sandy loam or loam. NDS does not recommend sand, or native soil with a high clay content: clay holds water and starves the roots of air, and sand doesn't hold the turf. A well-draining sandy loam is the safe default.

• Fill from the outside in. Work from the edges toward the middle and avoid driving on empty pavers. If a loader or dump truck has to cross empty cells, keep it moving straight; sharp 90-degree turns can shift the panels.
• Overfill slightly. Leave the soil ¼ to ½ in. above the top of the cells, level with the surrounding grade. Once the grass fills in, the cells are barely visible.
• Plant within 30 days. Seed, hydroseed or sod (laid on top or recessed). A fast-growing, drought-tolerant mix such as rye and fescue works in most climates; NDS also recommends a thatch-resistant turf.
• Let it establish. Water generously and keep vehicles off for 4 to 6 weeks, until the grass is rooted well enough to anchor the pavers.

Edges, Slopes & Staking

Edges. Leave at least 1 in. between the pavers and any concrete curb, walk or slab so the plastic can expand. NDS's edging detail shows a 6 in. x 6 in. concrete edge as an option, with the sod sitting about ½ in. above the paver. On fire lanes, NDS shows optional reflective delineators along the edge so drivers can find the lane under grass.

Staking. On level ground, EZ Roll grass pavers usually don't need stakes. Every panel has molded eyelets for NDS GPSTAKE anchors (12 in. x 3/8 in. galvanized steel), which are sold separately. Where stakes are used, NDS places them at the corners and center of each roll end and every 10 ft along both edges, plus extra at cuts and turns.

Slopes. The NDS written specification is stricter than the base table above for grass-filled EZ Roll:

For emergency access lanes, NDS recommends anchoring with GPSTAKE stakes and fender washers at cross slopes of 5% or more and at sharp 90-degree turns. Keep the bottom of the base at least 3 ft above the seasonal high water table. If your site is steeper than 5%, send us the plan with a quote request and we'll include stakes and check the layout with NDS.

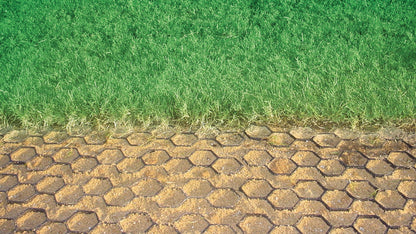

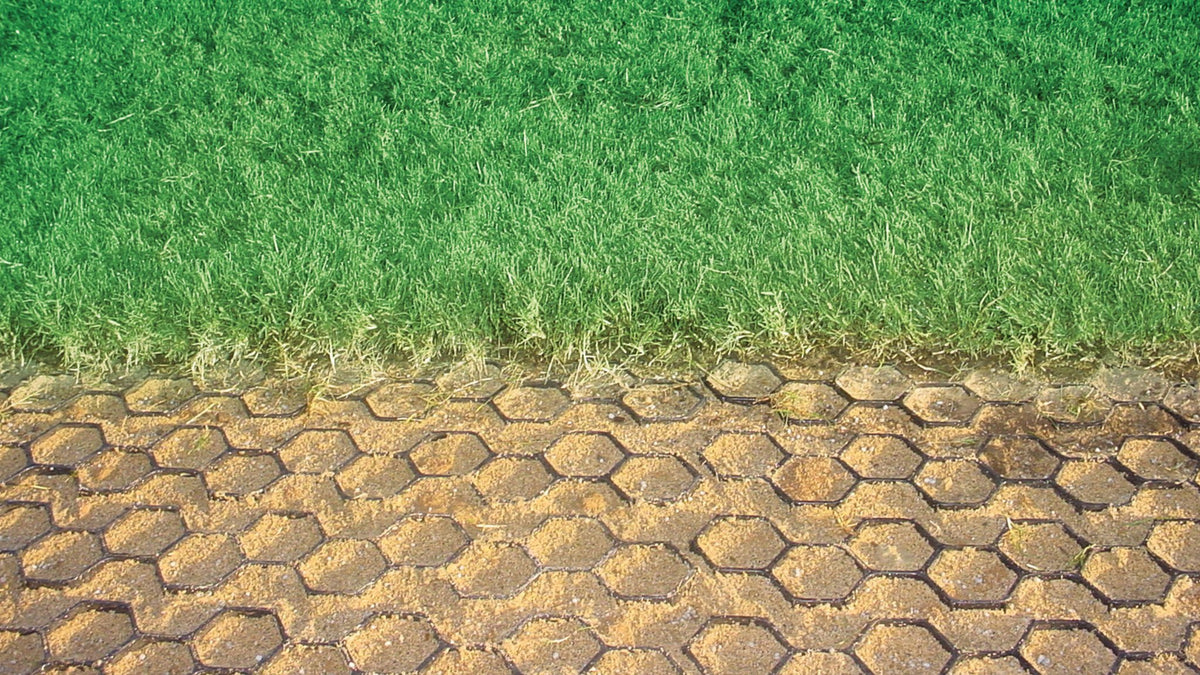

EZ Roll Installation Photos

Why Buy EZ Roll From Landscape Drainage Proz

• Authorized NDS dealer. Genuine NDS EZ4X150 rolls with full manufacturer specs, details and warranty.
• Published price, free shipping. $2,110 per roll on the page, no “call for price.” Orders over $2,000 ship free, so every 4' x 150' roll does.
• Known lead time. Most orders ship within 4 business days and arrive in 3 to 6 business days by common carrier.
• Project quotes. Contractor, municipal and tax-exempt orders get a written quote with freight to your site ZIP code. Request a quote.
• A person on the phone. Call 203-951-9409 (Mon–Fri, 9–5 ET) or email info@landscapedrainageproz.com to size a fire lane or overflow lot.

Maintenance

Mow and water like a normal lawn. Check the surface now and then and replace any damaged section. Don't run thatching or scalping equipment over the pavers, and when plowing snow use skid shoes or raise the blade at least 2 in. NDS notes grass surfaces are for emergency and occasional traffic; daily driving in the same tracks will wear the grass.

Full walkthrough: Grass Driveway Pavers: Cost, Base Prep & Installation Guide.

EZ Roll Grass Paver Price & Cost

The NDS EZ Roll grass paver 4' x 150' roll (EZ4X150) is $2,110 and covers about 600 sq ft, or roughly $3.51 per sq ft of paver. Orders over $2,000 ship free, so every 4' x 150' roll ships free.

For smaller areas, the EZ Roll 4' x 24' roll (EZ4X24) is $425 for 95 sq ft. Your total project cost also includes the compacted stone base, topsoil and seed or sod, which vary by region. Use the roll calculator above to size your order, or request a quote for multi-roll and municipal projects.

Other Sizes & Alternatives

Need a smaller roll?

The EZ Roll 4' x 24' roll (EZ4X24) covers 95 sq ft and weighs 60 lb, a good fit for single driveways, parking pads and paths. It locks onto 4' x 150' rolls with the same tabs.

Filling with gravel instead of grass?

EZ Roll gravel pavers come in 4' x 150' rolls in five colors and hold gravel in place on driveways, paths and parking areas.

Small or irregular areas?

Tufftrack 2' x 2' grass paver panels handle tight spaces and odd shapes.

Ordering 10 or more rolls?

For fire lanes, overflow lots and municipal projects, request a quote with your delivery ZIP code. We quote freight and delivery to your site, and tax-exempt orders are welcome.

Downloads & Resources

• EZ Roll grass paver installation detail (PDF)
• NDS EZ4X150 20' fire lane installation detail, H-20 load (PDF)
• NDS EZ Roll grass pavers written specification (Word)
• NDS EZ Roll curb / concrete edging detail (PDF)
• NDS EZ Roll staking detail (PDF)
• NDS EZ Roll with EP panel root barrier detail (PDF)
• NDS EZ Roll reinforced grass paver installation details (CAD, DWG)
• NDS permeable pavers catalog 2026–2027 (PDF)
• NDS permeable pavers brochure: EZ Roll Grass, EZ Roll Gravel, Tufftrack (PDF)
• NDS load ratings (H-20 / H-25)
• NDS document library

EZ Roll grass paver case studies

• 10,800 sq ft fire lane, County Administration Complex, Greenville, SC (NDS write-up)
• 24,000 sq ft event overflow parking, corporate HQ, Durham, NC (NDS) – PDF
• All NDS case studies
