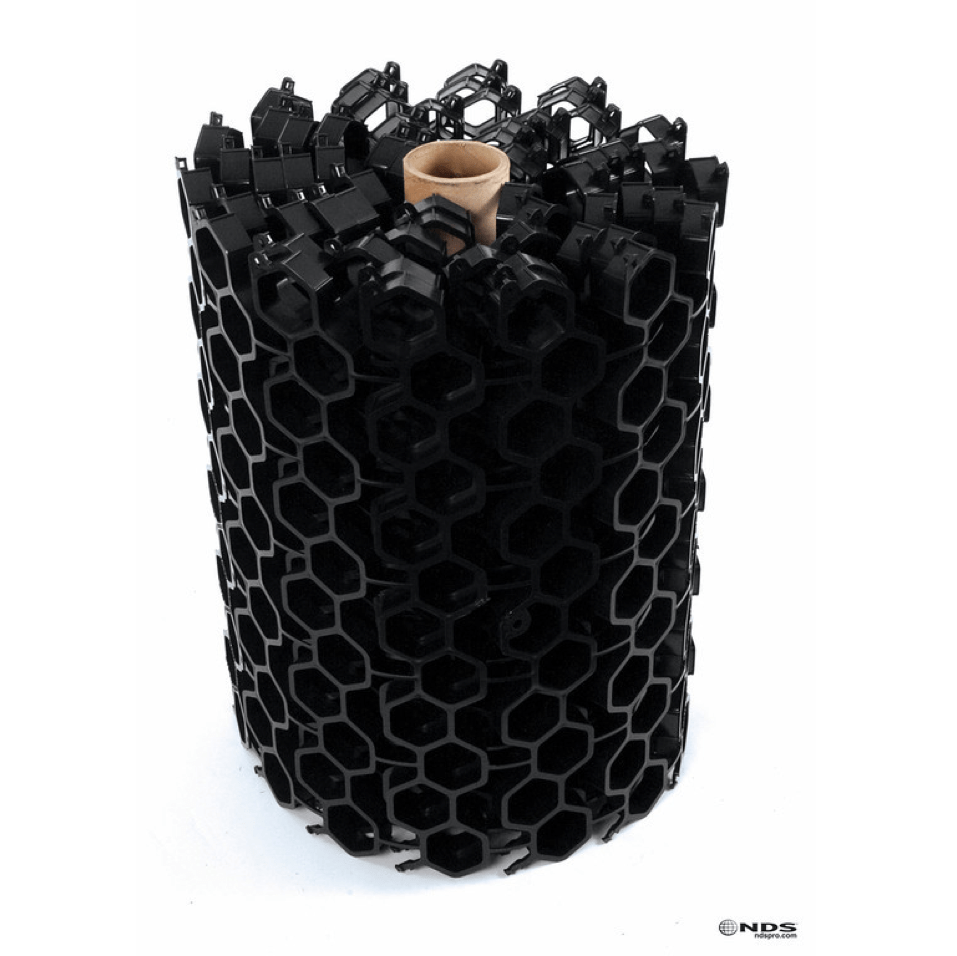

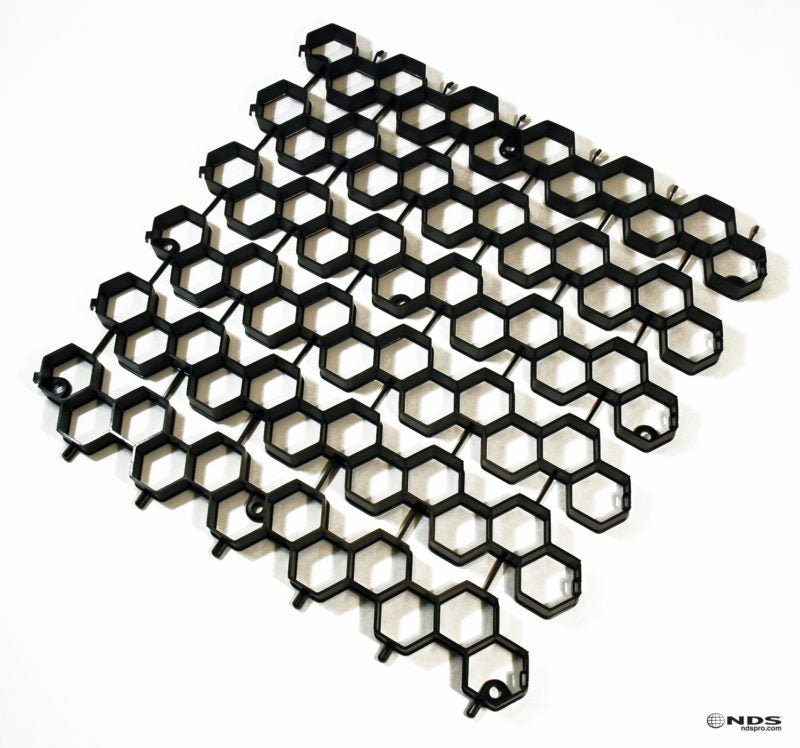

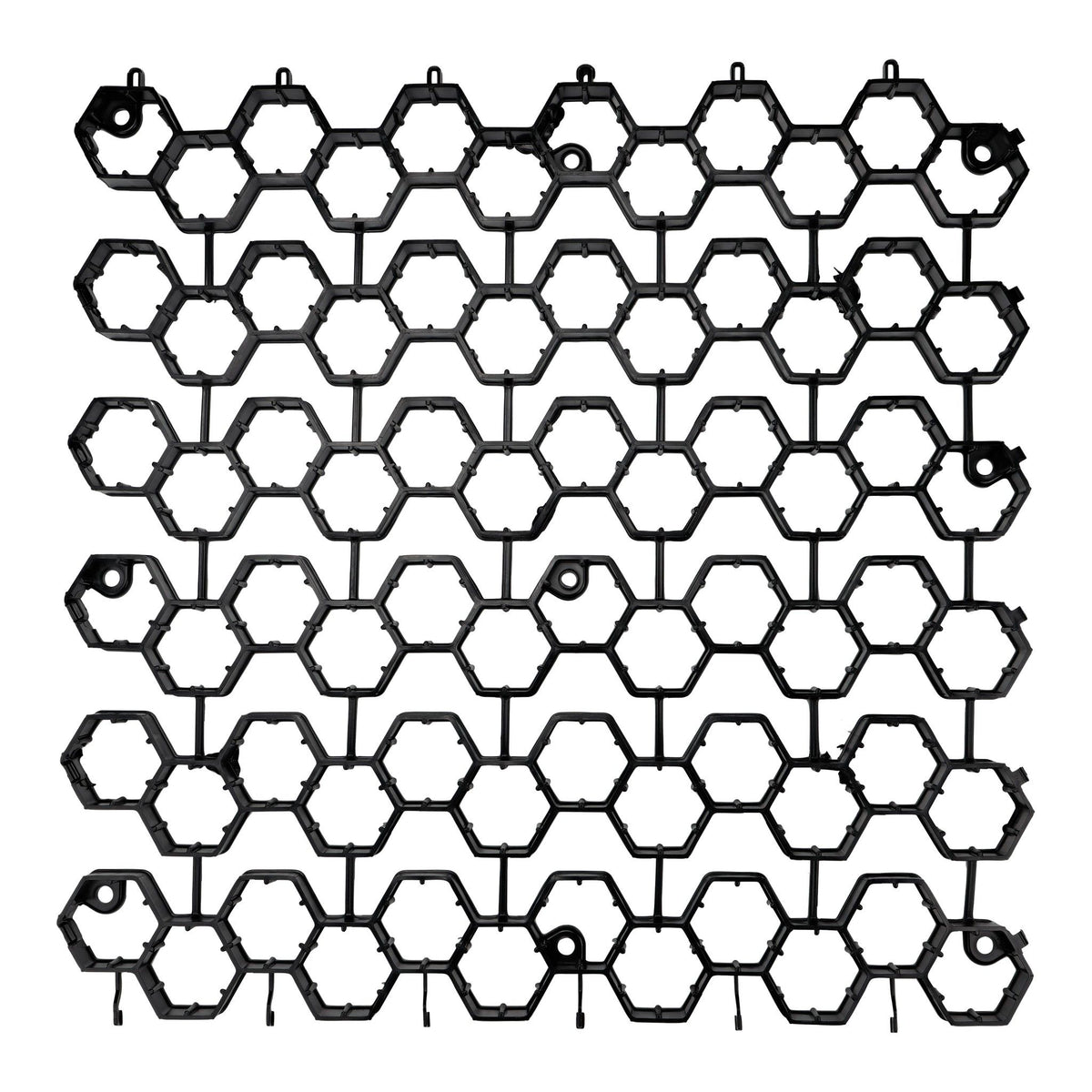

NDS EZ Roll Grass Pavers – 4' x 24' roll. Sustainable, high-strength turf protection.
NDS EZ Roll Grass Pavers are the ultimate solution for creating durable, eco-friendly surfaces that support healthy grass growth in high-traffic areas. With the highest compressive strength of any grass paver on the market, these pavers are designed to handle light to heavy vehicular traffic while preventing soil compaction and promoting robust root growth.
Unlike traditional hardscaping methods like concrete or asphalt, NDS grass pavers allow turf to thrive in areas that would typically be impervious. This makes them an eco-friendly alternative for driveways, fire lanes, parking lots, and more.
EZ4X24 Specifications
| Part number | EZ4X24 |
|---|---|
| GTIN / UPC | 052063006420 |
| Brand | NDS |
| Roll size | 3.96 ft x 24 ft (nominal 4' x 24'), 1 in. thick |
| Coverage per roll | 95 sq ft |
| Roll weight | 60 lbs |
| Shipping dimensions | 15 x 15 x 24 in |

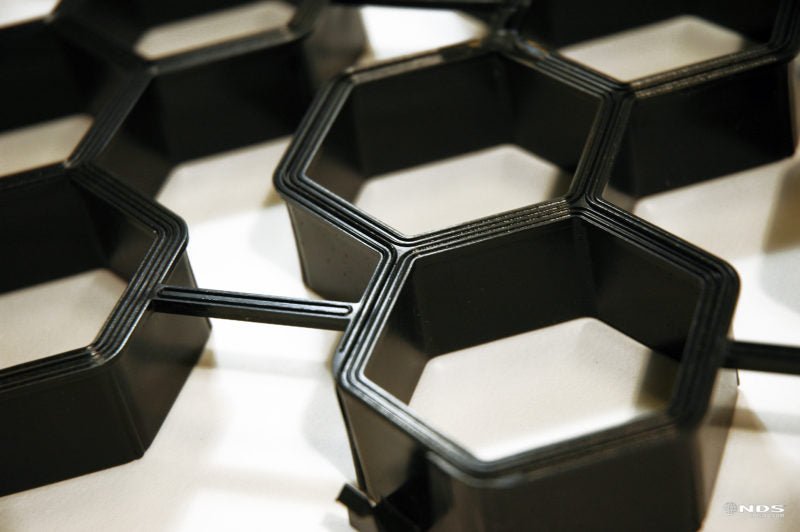

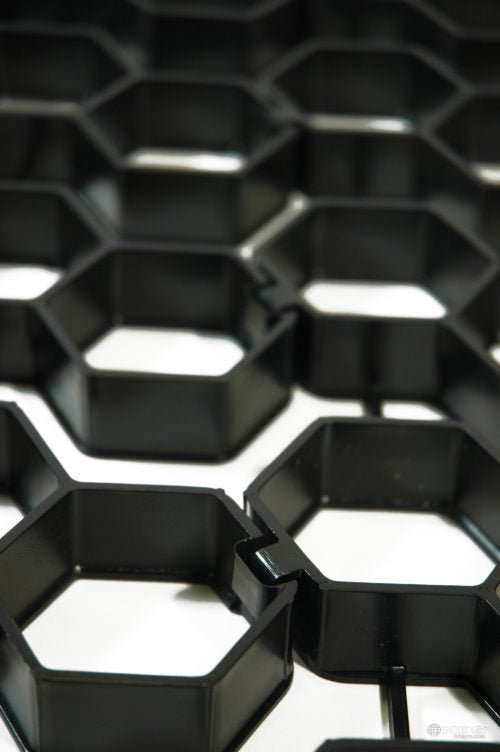

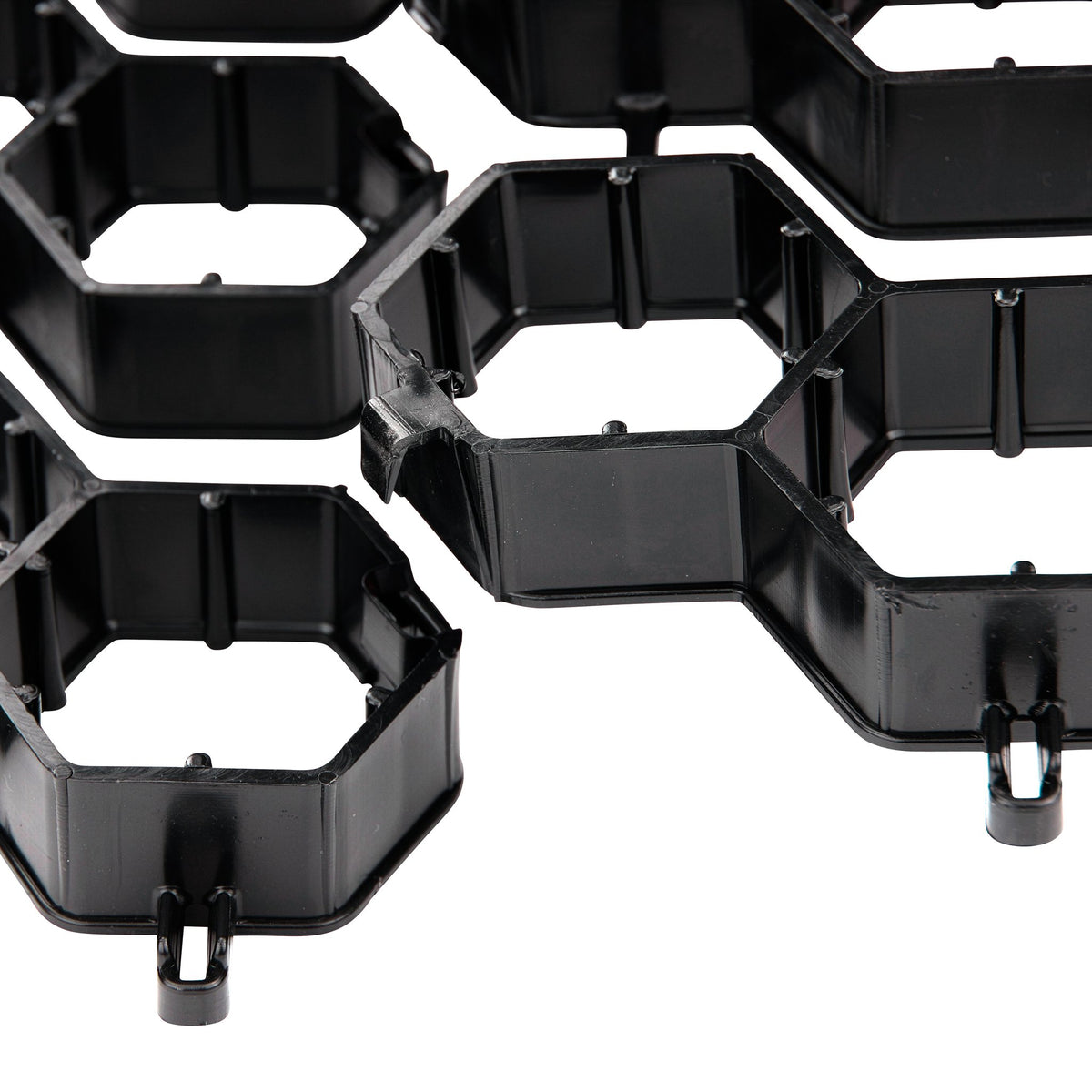

| Connection | Lateral snap-lock system |
| Compressive strength (empty cells) | 53,683 psf |
| Load rating | H-20 and H-25 |
| Life expectancy | 25 years when well maintained (NDS) |
| Material | 100% recycled plastic, made in the USA |
Specifications: NDS EZ Roll Grass Pavers (manufacturer product page and technical documents), checked September 2026.
Key Features
- Pre-assembled rolls for easy installation: no special tools required; simply connect rolls using the lateral snap-lock system for continuous stability and load-bearing capacity.
- Made in the U.S.A.: manufactured from 100% recycled plastic, a sustainable choice for environmentally conscious projects.

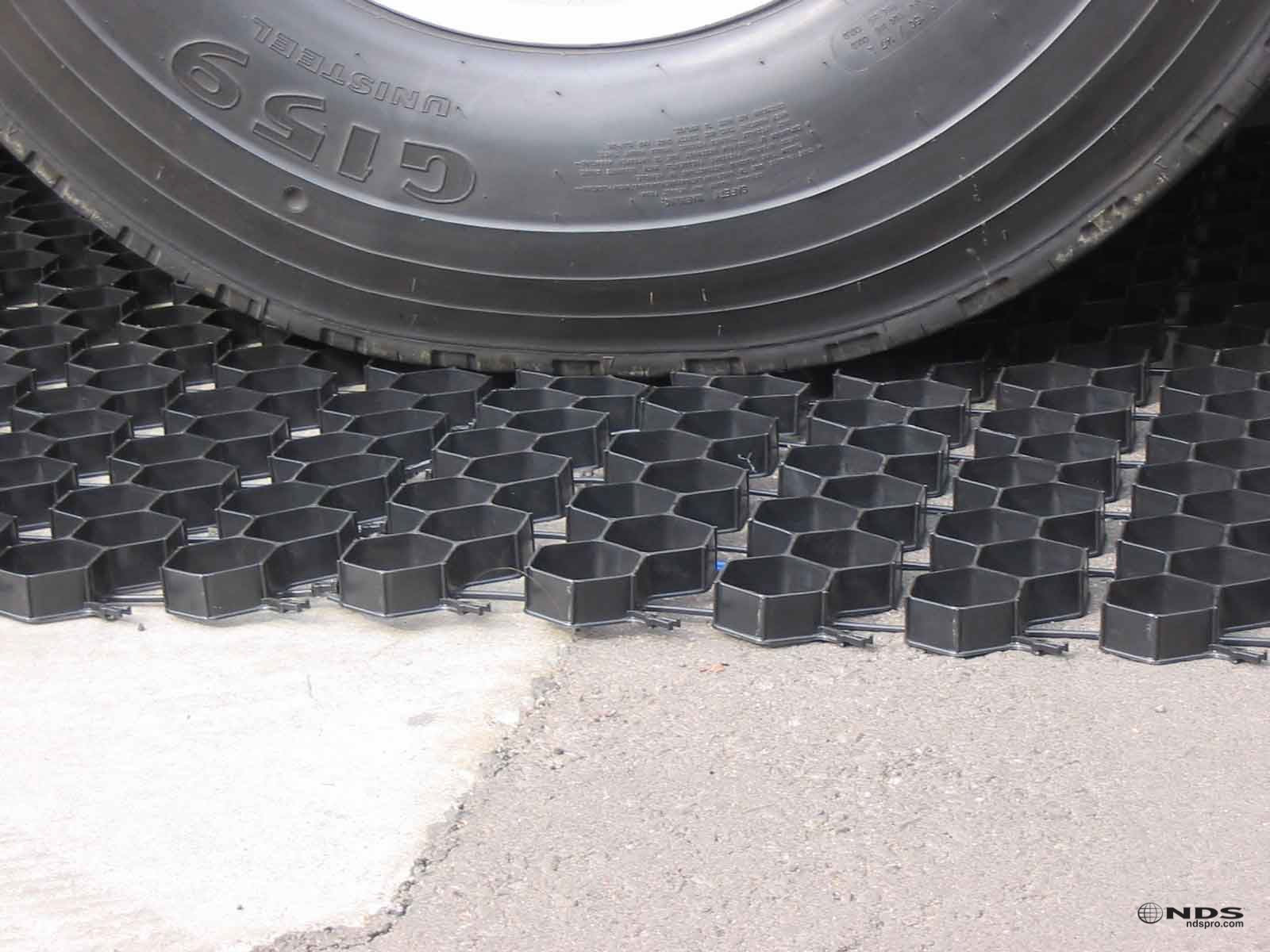

- High compressive strength: engineered to withstand heavy loads while protecting grass roots.
Applications

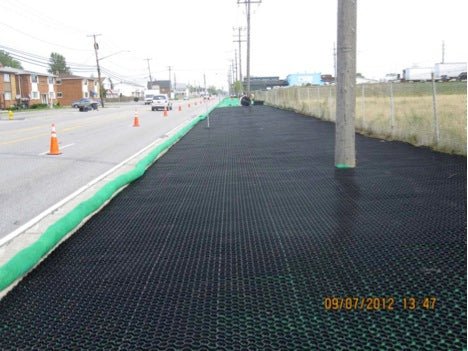

- Fire lanes and emergency access roads
- Residential driveways
- RV parking
- Parking lots
Environmental Benefits
- Permeable design: reduces stormwater runoff and filters pollutants naturally.
- Mitigates urban heat island effect: grass stays cooler than traditional hardscapes, reducing heat absorption.

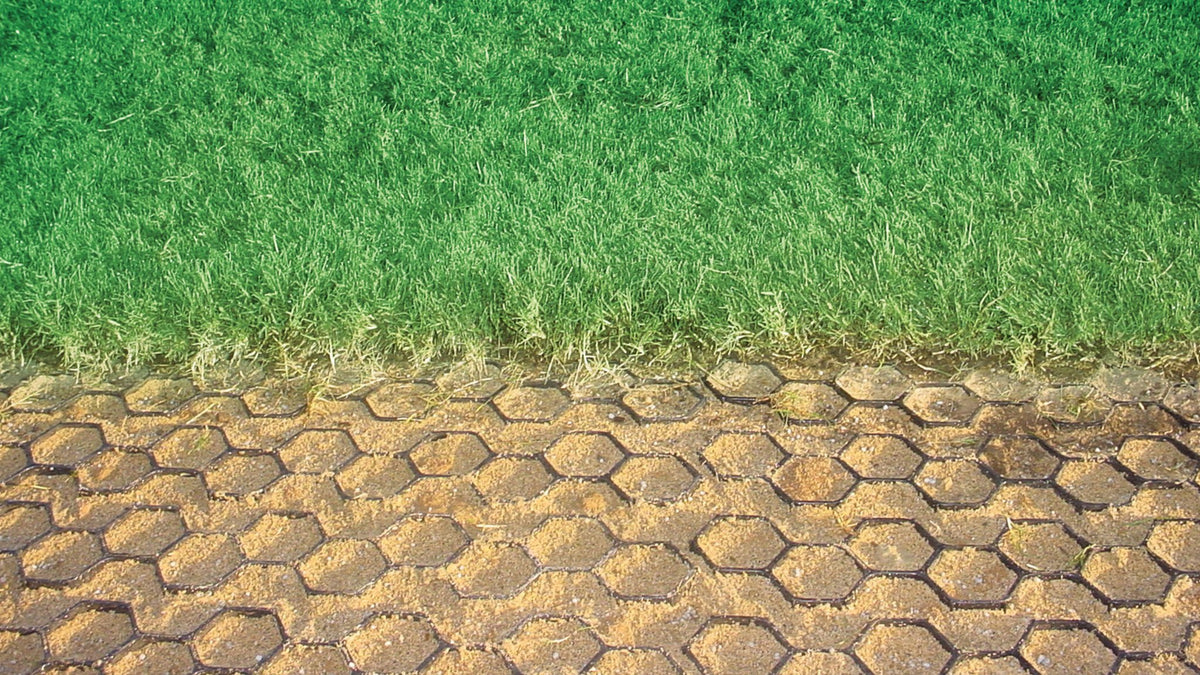

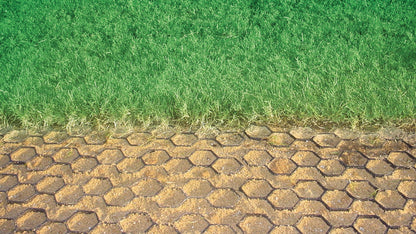

- Promotes healthy turf: protects root zones and stabilizes soil for long-term grass health.
Why Choose NDS EZ Roll Grass Pavers?
- Cost-effective: less expensive to maintain than traditional hardscaping.
- Aesthetically pleasing: enhances the natural look of your landscape.
- Durable & reliable: built to last with superior load-bearing capacity.

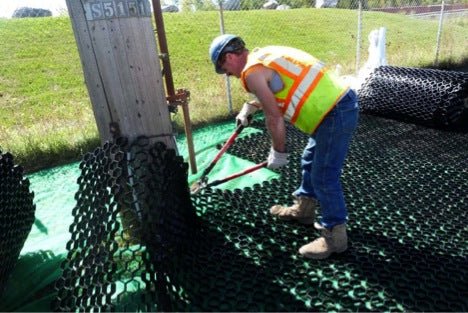

Installation
See the EZ Roll installation detail (PDF) and the installation video.
Shipping
Orders over $2,000 ship free, so five or more rolls ship free ($425 per roll delivered). Smaller orders ship for $120 per roll by common carrier.
Buying four rolls? Four rolls cost $2,180 delivered ($1,700 + $480 shipping), while five rolls cost $2,125 with free shipping, so the fifth roll lowers your total by $55.
Base Preparation
NDS recommends a compacted AASHTO #57 stone base sized to the traffic:
| Traffic | Minimum #57 stone base | Maximum grade |
|---|---|---|
| Foot traffic only | No base required | 3% |
| Golf carts and light loads | 4 in. | Not specified |
| Cars and pickup trucks | 6 in. | 10% |
| Fire trucks and heavy loads | 8 in. | 6% |
A non-woven geotextile under the base is optional. Poorly draining soil may need a perforated underdrain. Leave at least 1 in. of clearance at concrete edges.

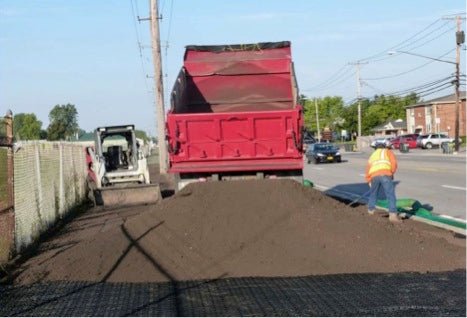

Filling & Seeding
Fill the cells with well-draining sandy loam topsoil. Seed with a fast-growing, drought-tolerant mix such as rye and fescue, or lay sod on top. Water generously and keep vehicles off for 4 to 6 weeks while the grass establishes.
Maintenance
Mow and water like a normal lawn. Check the surface now and then and replace any damaged section. NDS notes grass surfaces are for emergency and occasional traffic; daily driving in the same tracks will wear the grass.
Full walkthrough: Grass Driveway Pavers: Cost, Base Prep & Installation Guide.
EZ Roll 4' x 24' Price & Cost
The NDS EZ Roll grass paver 4' x 24' roll (EZ4X24) is $425 and covers 95 sq ft, about $4.47 per sq ft of paver. Delivered, that's $545 per roll for one to four rolls and $425 per roll for five or more (free shipping over $2,000).
Covering more than about 500 sq ft? The EZ Roll grass paver 4' x 150' roll (EZ4X150) covers about 600 sq ft for $2,110 with free shipping, roughly $3.51 per sq ft. Your project cost also includes the compacted stone base, topsoil and seed or sod, which vary by region.
Other Sizes & Alternatives
Covering a large area?
The EZ Roll 4' x 150' roll covers 601.6 sq ft in one piece and ships free. It connects to 4' x 24' rolls with the same tabs.
Filling with gravel instead of grass?
EZ Roll gravel pavers come in 4' x 150' rolls in five colors and hold gravel in place on driveways, paths and parking areas.
Small or irregular areas?
Tufftrack 2' x 2' grass paver panels handle tight spaces and odd shapes.
Ordering 10 or more rolls?
For fire lanes, overflow lots and municipal projects, request a quote with your delivery ZIP code. We quote freight and delivery to your site, and tax-exempt orders are welcome.
Frequently Asked Questions
How many square feet does one EZ4X24 roll cover?
One roll is 3.96 ft x 24 ft and covers 95 sq ft. It weighs 60 lb.
Can I connect 4' x 24' rolls to 4' x 150' rolls?
Yes. All EZ Roll grass pavers connect with the same lateral locking tabs, so you can combine 4' x 24' rolls with EZ Roll grass paver 4' x 150' rolls.
How deep should the base be?
At least 6 in. of compacted #57 stone for cars and pickups, 4 in. for golf carts.
How much is shipping?
Orders over $2,000 ship free, so five or more 4' x 24' rolls ship free. Smaller orders ship for $120 per roll by common carrier.
Downloads & Resources
- EZ Roll grass paver installation detail (PDF)
- NDS permeable pavers brochure: EZ Roll Grass, EZ Roll Gravel, Tufftrack (PDF)
- NDS permeable pavers product range
- NDS document library: EZ Roll specifications, CAD details and installation guides
- NDS load ratings (H-20 / H-25)
